Terminals and leadframe
The electric terminals are components in charge to establish the electrical contact of the products. We also call them contactors and leadframes.
The different kinds of electric terminals
The 3 mains categories of electric contactors we produce are distinguished by the material.
- First of all, the terminals and leadframe in Copper, Brass or Bronze. Such materials are very recurrent linked to its very high electric conductivity and its welding possibilities.
Large possibilities of grades exist depending of the hardness and of the elasticity needed with the possibility of spring effect if required by the client.
Such elctrical terminals and contacts are treated on the surface with large possibilities of plating: tin (Sn), nickel (Ni), silver (Ag), gold (Au). Such surface treatment is possible totally on the component in case of necessity or we can suggest specific partial treatment to respond to you productivity targets with 2 or 4 faces treated depending of your standards. - The aluminium electric terminals and connectors, also used for its high performance in terms of conductivity and of thermical resistance.
- The steel or stainless steel contactors (annealed state or spring effect), for its mecanichal resistance and its competitiveness compared to the material containing copper.
Our strong experience since 1977 and the partnerships advanced with our suppliers of surface treatment and heat treatment allow us to study all kind of terminal and leaframes projects for the automotive and for the industry. Do not hesitate to consult us.
Examples of electric terminals

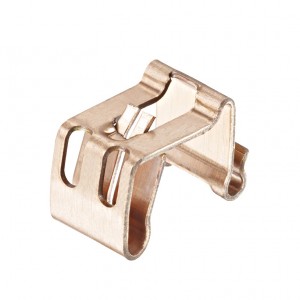

Bronze electric terminal
Bronze electric terminal made by stamping and bending of precision under press thanks to a progressive tool.
Purpose: Electric
Material: Bronze
Dimension: 10 x 6 x 7 mm
Thickness: 0.4 mm
Yearly quantity: 200,000 parts
Wire clamp
Wire clamp integrating a threading function created under a high speed press.
Purpose: Electric
Material: Steel
Dimension: 15 x 8.5 x 9 mm
Thickness: 1 mm
Yearly quantity: 5,000,000 parts

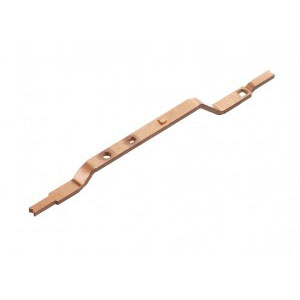

Terminal of connection
Terminal of connection with a semi stamping operation.
Purpose: Electric
Material: Copper
Dimension: 89 x 10 x 4 mm
Thickness: 1.5 mm
Yearly quantity: 50,000 parts

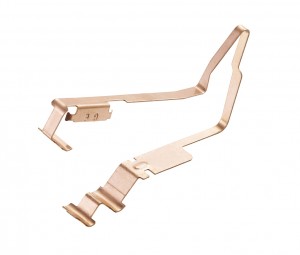

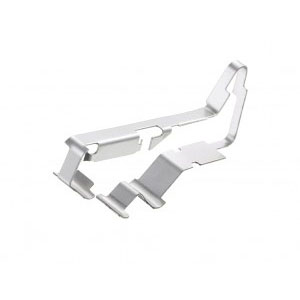

Stainless steel multi-function terminal and leadframe
Multi function terminal and leadframe in stainless steel, two symetric sun visor components are made in the same tool.
Purpose: Automotive
Material: Spring stainless steel
Dimension: 61 x 33 x 11 mm
Thickness: 0.6 mm
Yearly quantity: 100,000 parts

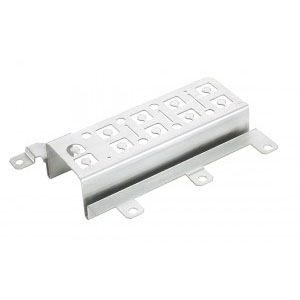

Copper power converter
Copper and Tin plated power converter used in electric automotive vehicles.
Purpose: Connectors
Material: Copper + Tin plating (Sn)
Dimension: 190 x 124 x 39 mm
Thickness: 1 mm
Yearly quantity: 40,000 parts

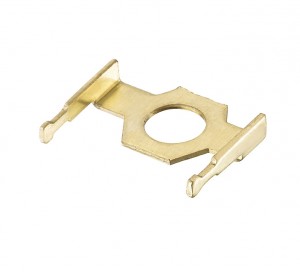

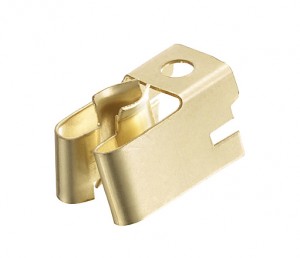

Brass electric connector
Electric connector made by precision stamping and bending in a progressive tool.
Purpose: Electric
Material: Brass
Dimension: 19 x 17 x 7 mm
Thickness: 0.6 mm
Yearly quantity: 50,000 parts

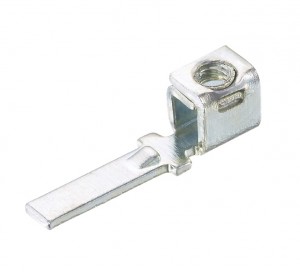

Threading wire clamp pin
Threading wire clamp pin integrating a surface treatment and a threading function made with the high speed press technology.
Purpose: Electric
Material: Steel
Dimension: 18 x 5,5 x 4 mm
Thickness: 0.8 mm
Quantité annuelle réalisée : 500,000 parts
Bronze electric connector with tin plating
Electric connector in bronze integrating a tin plating (Sn) and made into a 2 cavities stamping and bending tool.
Purpose: Electric
Material: Bronze + Tin plating (Sn)
Dimension: 17 x 14 x 7 mm
Thickness: 0.4 mm
Yearly quantity: 4,000,000 parts
Sun visor electric terminal
The 2 symetric components are made into the same progressive tool for the auotmotive sun visor applications.
Purpose: Automotive
Material: Bronze
Dimension: 83 x 60 x 11 mm
Thickness: 0.5 mm
Yearly quantity: 200,000 parts

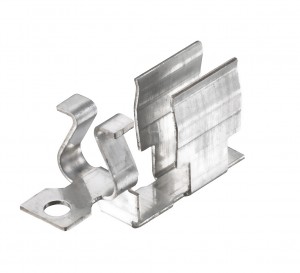

Electric contactor
Purpose: Electric
Material: Bronze and Tin plating
Dimension: 22 x 10 x 5 mm
Thickness: 0.4 mm
Yearly quantity: 300,000 parts
Electrical outlet terminal
Electrical outlet terminal made with high precision stamping and bending press.
Purpose: Electric
Material: Brass
Dimension: 20 x 12 x 13 mm
Thickness: 0.6mm
Yearly quantity: 50,000 parts

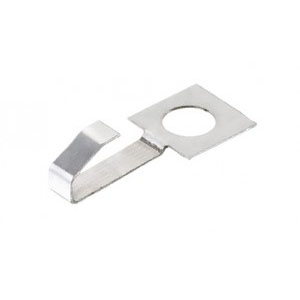

Stainless steel electric contactor
Stamping and bending contactor in stainless steel.
Purpose: Electric
Material: Stainless steel spring grade
Dimension: 8 x 3,5 x 2 mm
Thickness: 0.2 mm
Yearly quantity: 800,000 parts

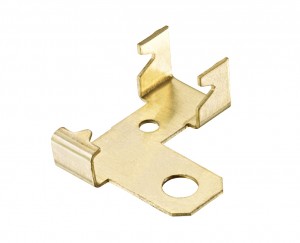

Electric terminal contactor
Electric terminal contactor made in high precision stamping and bending press.
Purpose: Electric
Material: Brass
Dimension: 13 x 11 x 2,5 mm
Thickness: 0.6 mm
Yearly quantity: 100,000 parts
