The nut cage and the fixing clips are destined to the fixing components to all kind of industrial sectors.
Two categories of products exist, the nut cages and the fixing clips, treated additionnaly by heat treatment improving the mechanical resistance and the strength resistance.
Frequently a surface treatment is applied to protect the component against the corrosion and to upgrade the component aspect. The surface treatment can also have the function to ameliorate the sliding properties of the component.
The nut cages or the fixing clips in stainless steel can be procured annealed or harderned, but the components in this material don’t need additional surface treatment. In fact such material is already protected against the corrosion.
The hardened stainless steel are material grades with a natural mechanichal resistance and also with a controlled elastic properties. Such specific material can make possible the manufacturing of fixing clips with an important spring effect.

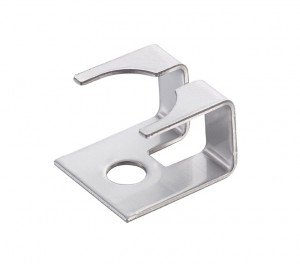

Fixing clips
The fastening clips are made under stamping press equipped with a progressive stamping tool.
Purpose: Electric
Material: Stainless steel
Dimension: 21 x 20 x 15 mm
Thickness: 1 mm
Yearly quantity: 50,000 parts

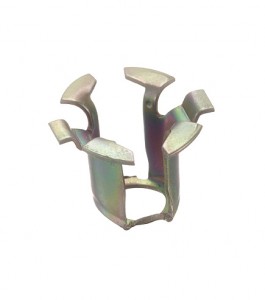

Nut cage
The nut cage is produced in steel and quenched and protected through a Zn treatment. 7 different components are manufactured by a precision stamping, bending and deep drawing operation.
Purpose: Automotive
Material: Steel
Dimension: Diameter 22 mm x 16 mm
Thickness: 0.6 mm
Yearly quantity: 2,000,000 parts

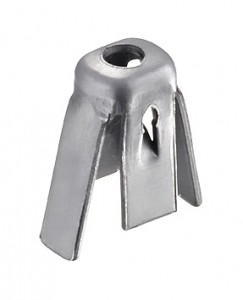

Steel fixing clip
Steel fastening clip for the automotive with heat treatment and surface treatment.
Purpose: Automotive
Material: Steel
Dimension: 16 x 15 x 14 mm
Thickness: 0.6 mm
Yearly quantity: 4,000,000 parts
Square nut cage
Made in steel and including heat treatment and a surface treatment process. This part is produced by stamping and deep-drawing with a progressive tool.
Purpose: Automotive
Material: Steel
Dimension: 23 x 15 x 8 mm
Thickness: 0.6 mm
Yearly quantity: 400,000 parts

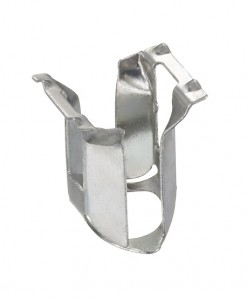

Quick assembly nut cage
Stamping nut cage including the quick assembly function made under stamping press with Lomacy progressive tool.
This steel stamping, bending and deep-drawing component intergrate heat treatment and surface treatment.
Purpose: Electric
Material: Steel
Dimension: 14 x 12 x 9 mm
Thickness: 0.3 mm
Yearly quantity: 600,000 parts
Stainless steel fixing clip
Stainless steel fixing clip made by stamping and bending operation into a progressive tool under press.
Purpose: Automotive
Material: Special spring stainless steel
Dimension: 20 x 12 x 12 mm
Thickness: 0.6 mm
Yearly quantity: 400,000 parts
Fixing clip
Steel fixing clip with heat treatment and surface treatment for the automotive undustry made into a progressive tool under stamping press.
Purpose: Automotive
Material: Steel
Dimension: 11 x 9 x 5 mm
Thickness: 0.6 mm
Yearly quantity: 500,000 parts
Automotive fixing clips
Made in steel and including heat treatment and a surface treatment process. This part is produced by stamping in a progressive tool under press.
Purpose: Automotive
Material: Steel
Dimension: 13 x 12 x 8 mm
Thickness: 0.4 mm
Yearly quantity: 600,000 parts

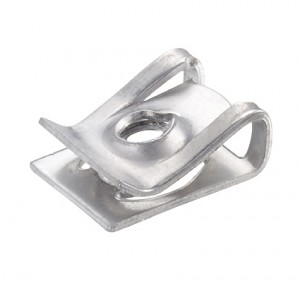

Fixing nut in the metal edge sheet
Fixing nut in the metal edge sheet for the automotive made by stamping, bending and deep-drawing on a 4 cavities progressive tool.
Purpose: Automotive
Material: Steel
Dimension: 13 x 10 x 4 mm
Thickness: 0.6 mm
Yearly quantity: 15,000,000 parts
Steel fixing clip
Steel fixing clip made by stamping and bending of precision into a stamping tool.
Purpose: Automotive
Material: Steel
Dimension: 24 x 15 x 7 mm
Thickness: 0.4 mm
Yearly quantity: 200,000 parts
Nut cage with treatment
Steel nut cage integrating heat treatment and surface treatment which are very soecific for the aeronautic industry.
Purpose: Aeronautic
Material: Steel
Dimension: Diameter 12 mm x 9mm
Thickness: 0.5 mm
Yearly quantity: 20,000 parts
Located in Haute-Savoie at the heart of the Tech Valley between Geneve and Chamonix Mont-Blanc, Lomacy Industrie has been founded in 1977 and is certified ISO 9001 since 2022. The main service Lomacy can bring is to follow your precision stamping and bending projects from the design phase until the tooling manufacturing and the components deliveries making of Lomacy a relevant partner for your projects.
