Various punched and stamped parts
NON EXHAUSTIVE STAMPING COMPONENTS AND PLASTIC INJECTION INSERTS AND BRACKETS in steel, stainless steel, copper, bronze, plastic, PVC.
A large panel of components we produce can not be classified into a specific category.
We produce components with the traditional materials and we also work with specific materials like Covar and Titanium. Some other applications has been developed with plastic materials: PVC and Mylar.
A possible category is the stamping of insert for the plastic injection, bracket of support with high precision stamping and bending and also the deep-drawing technology.

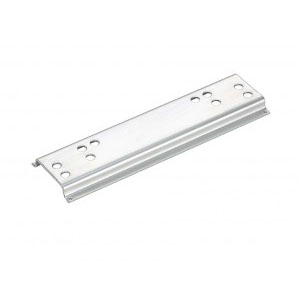

Electrical panel rail
Manufacturing of 8 models of electrical panel rail in stainless still with Tin plating treatment (Sn) made under stamping press.
Purpose: Electric
Maerial: Stainless steel and Tin plated (Sn)
Dimension: 119 x 35 x 8 mm
Thickness: 1 mm
Yearly quantity: 100,000 parts

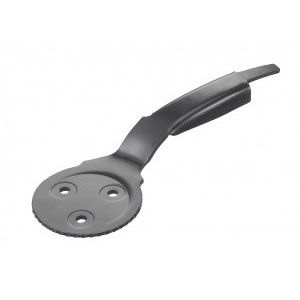

Door handle insert
Door handle insert for the automotive plastic injection, component integrating a cataphorese treatment.
Purpose: Automotive
Material: Steel and Tin plated (Sn)
Dimension: 195 x 70 x 37 mm
Thickness: 3 mm
Yearly quantity: 50,000 parts
Glass support metal bracket
Glass support metal bracket for the plastic injection, made in galvanized steel.
Purpose: Automotive
Material: Steel
Dimension: 72 x 33 x 20 mm
Thickness: 1.4 mm
Yearly quantity: 500,000 parts
Lock bolt metal insert
18 models of this component in stainless steel are made into the same progressive tool in different versions.
Purpose: Building
Material: Stainless steel
Dimension: 47 x 28 mm
Thickness: 2.5 mm
Yearly quantity: 400,000 parts
Exhaust timer wheel
Mechanical exhaust timer wheel with a precision at 0,01 mm achieved on the internal diameter.
Purpose: Electric
Material: Brass
Dimension: Diameter 14 mm
Thickness: 0.5 mm
Yearly quantity: 500,000 parts

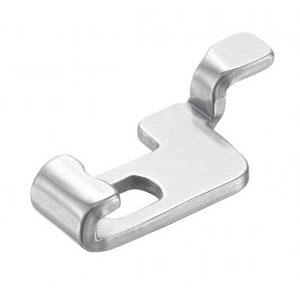

Seat belt component
Seat belt component. Following the stamping operation, the part is trumbled and polished.
Purpose: Leisure
Material: Stainless steel
Dimension: 40 x 19 x 18 mm
Thickness: 2.4 mm
Yearly quantity: 40,000 parts

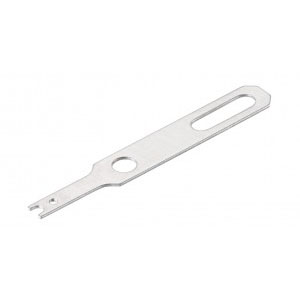

Sensor electrical contact
Sensor electrical contact and crimping assembly of machining pin under press.
Purpose: Industry
Material: Stainless steel
Dimension: 45 x 13 x 15 mm
Thickness: 1 mm
Yearly quantity : 200,000 parts

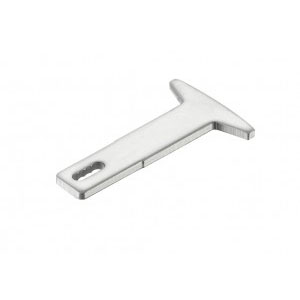

Cutting blade insert
Stamping component in stainless steel with heat treatment quenching process in bulk after stamping.
Purpose: Electric
Material: Stainless steel trempant
Dimension: 36 x 5.5 mm
Thickness: 0.5 and 1 mm
Yearly quantity: 30,000 parts

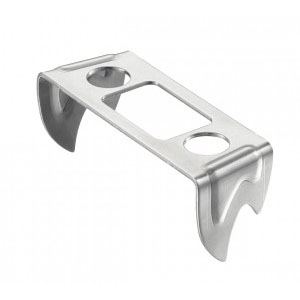

Snowshoes grip insert
This component is made with deep-drawing areas for a robustification of the rigidity.
Purpose: Sport and leisure
Material: Stainless steel
Dimension: 83 x 30 x 32 mm
Thickness: 1.5 mm
Yearly quantity: 50,000 parts

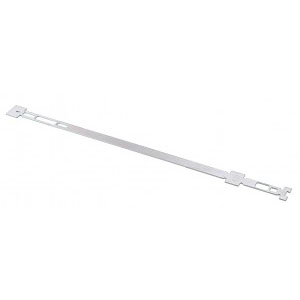

Door closing rod
Door closing rod for building made by stamping with a progressive tool on a press of 250 tons.
Purpose: Building
Material: Steel + surface treatment
Dimension: 543×32 mm
Thickness: 2 mm
Yearly quantity: 300,000 parts
Mechanical timing system
Mechanical timing system with 2 version of thickness made in the same progressive tool. Precision achieved: 0,01 mm on the internal diamater thanks to the screeding operation.
Purpose: Electric
Material: Brass
Dimension: Diameter 14 mm
Thickness: 0.5 and 1mm
Yearly quantity: 500,000 parts

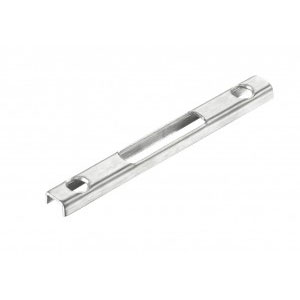

Door and bay striker insert
Door and bay striker insert in stainless steel, 10 different models are made.
Purpose: Building
Material: Stainless steel
Dimension: 95 x 11 x 6 mm
Thickness: 1.5 mm
Yearly quantity: 80,000 parts

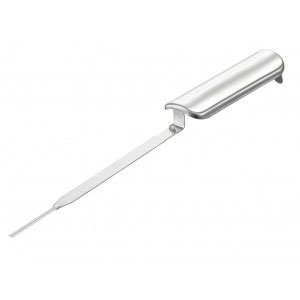

Electrode terminal
Electric contactor in brass made on stamping press.
Purpose: Medical
Material: Stainless steel
Dimension: 112 x 18 x 12 mm
Thickness: 0.4 mm
Yearly quantity: 70,000 parts
Stamping raw part before machining
Two diferent models has been developed for this raw part by precision stamping to save material before the finishing operation by machining for lighting systems.
Purpose: Automotive
Material: Aluminium
Dimension: 85 x 16 mm
Thickness: 4 mm
Yearly quantity: 300,000 parts
Ink pen clip
Component made by stamping, bending and deep-drawing process, this clip is then quenched and a polishing operation.
Purpose: Leisure
Material: Steel
Dimension: 45 x 7 x 10 mm
Thickness: 0.5 mm
Yearly quantity: 400,000 parts
Flat spring and leaf spring
Two diferent versions are produced of this flat spring blade by stamping in the same progressive tool.
Purpose: Automotive
Material: Special spring effect stainless steel
Dimension: 29 x 10 x 3 mm
Thickness: 0.5 and 0.7 mm
Yearly quantity: 400,000 parts
Located in Haute-Savoie at the heart of the Tech Valley between Geneve and Chamonix Mont-Blanc, Lomacy Industrie has been founded in 1977 and is certified ISO 9001 since 2022. The main service Lomacy can bring is to follow your precision stamping and bending projects from the design phase until the tooling manufacturing and the components deliveries making of Lomacy a relevant partner for your projects.
